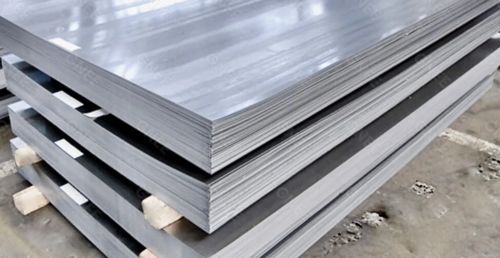

Stainless steel 321 sheets are widely used in applications where heat is a constant challenge. This grade is built to handle high temperatures without losing strength or corrosion resistance. It is preferred in systems that face repeated heating and cooling, such as exhaust lines and heat exchangers. The key reason behind this performance is titanium stabilization, which protects the steel structure when exposed to heat. Compared to grades like 304 and 316, SS 321 stays stable at elevated temperatures and resists damage that can occur after welding or long heat exposure.
What Is Stainless Steel 321?
Stainless Steel 321 is an austenitic stainless steel designed for high-temperature service. It contains titanium, which plays a major role in its performance. At grain boundaries titanium binds with carbon and stops the formation of carbide. This makes the material very resistant to corrosion between grains. It’s also easy to weld SS 321, and it can handle heat without breaking or losing strength. These qualities make stainless steel 321 sheets good for tough industrial use.
Chemical Composition of Stainless Steel 321 Sheets
The SS 321 chemical composition includes elements that work together to deliver strength, corrosion resistance, and heat stability. Chromium protects the surface from rust and oxidation. Nickel helps maintain the austenitic structure, which gives toughness and ductility. Titanium adds stability during high-temperature service and welding.
| Element |
Iron (Fe) |
Chromium (Cr) |
Nickel (Ni) |
Titanium (Ti) |
Manganese (Mn) |
Silicon (Si) |
Carbon (C) |
Phosphorus (P) |
Sulfur (S) |
| Percentage (%) |
Balance |
17.0 – 19.0 |
9.0 – 12.0 |
5×(C+N) min−0.70 max |
2.0 max |
0.75 max |
0.08 max |
0.045 max |
0.03 max |
Mechanical Properties of SS 321 Sheets
SS 321 properties include strong mechanical performance that stays reliable under heat. Even after being used for a long time at high temperatures the material stays strong and flexible.
| Property |
Value (Typical) |
| Tensile Strength |
515 MPa (min) |
| Yield Strength (at 0.2% offset) |
205 MPa (min) |
| Elongation (in 50mm) |
40% (min) |
| Hardness (Rockwell B) |
95 max |
At elevated temperatures, these properties remain stable compared to unstabilized grades. This makes SS 321 a safe choice for pressure and heat-loaded parts.
Physical Properties of Stainless Steel 321
Sheets of stainless steel 321 also have stable physical properties. The density is about 8.0 g/cm³, which is about the same as other austenitic grades. The melting point is between 1400°C and 1450°C so it can be used safely in areas with high heat. Thermal conductivity is about 16 W/m·K. This helps control the flow of heat. Electrical resistivity is about 0.72 µΩ·m, which supports use in heated industrial systems.
Key Properties of Stainless Steel 321 Sheets
Stainless steel 321 sheets combine several practical properties that support real industrial needs.
- Excellent High-Temperature Resistance :- These sheets are designed to work in spots where the heat stays between 425°C and 815°C. In these ranges, other steels might lose their structural integrity, but SS 321 remains stable.
- Good Oxidation Resistance :- SS 321 can handle air and gases up to 870°C without scaling or “peeling” away. This is vital for parts like exhaust pipes that are constantly hit by hot air.
- Resistance to Intergranular Corrosion :- Because of the titanium, this steel doesn’t suffer from “weld decay.” It stays solid and rust-free near welded joints. This is a common failure point for cheaper steels.
- Good Weldability and Formability :- These sheets can still be bent, cut and welded even though they are tough. This makes it a favorite for shops that need to build complex shapes for machines.
SS 321 Sheet Applications
There are many SS 321 sheet applications across various heavy industries. Whenever heat and chemicals are present, it is very likely that you will find this metal.
- Aerospace :- They are used for jet engine parts and exhaust stacks as it can survive the extreme heat of a running engine.
- Chemical Processing :- These sheets are ideal for storage tanks and piping that hold hot chemicals that would eat through standard steel.
- Heat Exchangers :- SS 321 sheets are used in machines that transfer heat between fluids, as the sheets won’t crack under constant temperature changes.
- Furnace Parts :- They are used for liners and heating elements that stay hot for days or weeks at a time.
- Expansion Joints :- These sheets are perfect for flexible bellows that expand and shrink as industrial pipes heat up and cool down.
Engineers choose SS 321 over 304 or 316 because it lasts longer in high-heat zones. While 304 is cheaper, it would fail much sooner, leading to expensive repairs and downtime.
Stainless Steel 321 Sheets vs 304 & 316
When choosing material for applications that will be exposed to heat, stainless steel 321 sheets are often compared to 304 and 316 grades. Each grade has a purpose, but they don’t all work the same way when exposed to heat and corrosion.
- Heat resistance :- SS 321 handles continuous high temperatures better than 304 and 316 due to titanium stabilization. It prevents strength loss and cracking during repeated heating and cooling cycles.
- Corrosion resistance :- 316 offers stronger resistance in chloride-rich and marine environments. SS 321 performs better than 304 when heat exposure and welding are involved. This reduces corrosion after service.
- Cost :- SS 321 is priced higher than 304 because of added alloying elements. It is usually more cost-effective than 316 when heat resistance matters more than chloride protection.
- Typical applications :- 304 is used for general fabrication and indoor applications. 316 suits marine, chemical, and salt-heavy conditions, while SS 321 is preferred for exhaust systems, heat exchangers, and furnace parts where temperature stability is critical.
Available Forms, Sizes, and Finishes
Stainless steel 321 sheets are available in a wide range of thicknesses, from thin gauge sheets to heavy plates. Both cold rolled and hot rolled options are common. Standard finishes include 2B for smooth surfaces, BA for bright appearance, and No.4 for brushed looks. These options support both industrial and visual needs.
How to Choose SS 321 Sheets for Your Application
Choosing the right sheet requires looking at a few factors:
- Check the Operating Heat :- If your project stays above 450°C, 321 is much safer than 304.
- Look at the Chemicals :- If you are dealing with strong acids at high heat, confirm that the titanium stabilization provides enough protection.
- Welding Needs :- If you plan on doing a lot of welding, 321 is better because it doesn’t require “post-weld heat treatment.”
- Standards :- Ensure the sheets meet ASTM or ASME standards to guarantee the quality of the metal.
Stainless steel 321 sheets are ideal for high-temperature applications where strength and corrosion resistance must last. Titanium stabilization is the key feature that protects the material during heat exposure and welding. The balanced SS 321 chemical composition and stable mechanical performance supports many critical industries. If your application involves heat, stress, and long service life, SS 321 sheets offer a dependable solution.
